Rotating table

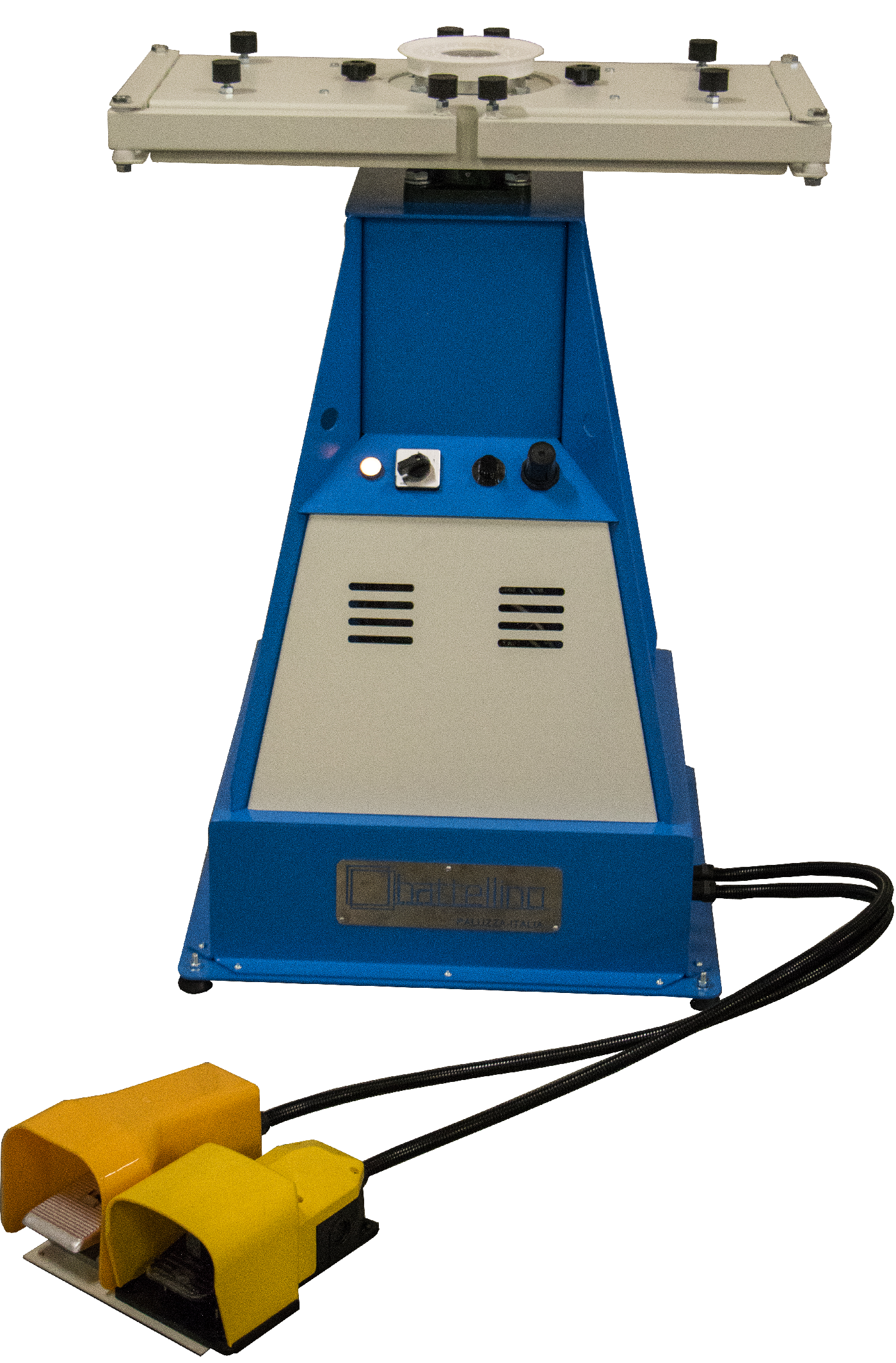

Machine for the manual last sealing of the insulating glass panels flat and curved .

Description

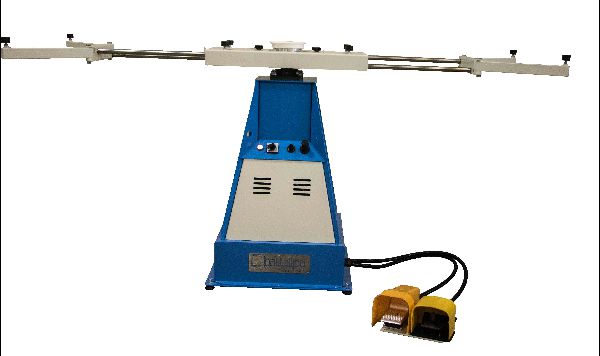

This machine is easy to use and, thanks to its extensible arms, adaptable to all the dimensions of glass.

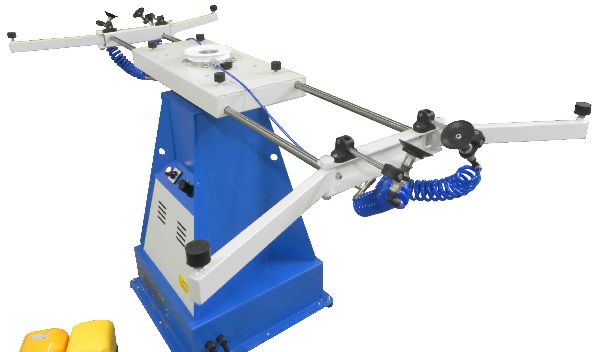

Equipped with one big central suction cup and five suction cups on the arms ( only curved model), allows to pass easily from small to big glasses maintain for all of them the perfect stability for a good work.

The rotation speed is electronically settled by inverter and can be both continuous or 1/4 one fourth turn. Even if it is a small machine, the solution with the big thrust bearing permits to obtain a very stable structure with minimum end play.

TECHNICAL FEATURES - ROTATING TABLE

Dimensioni piano di lavoro


Larghezza

massima 2250 mm -minima 750 mm

Profondità

massima 1000 mm -minima 350 mm

Altezza

1030 mm

Peso totale

100 Kg

Dimensioni vetro max:

(consigliate)2000x1000 mm

Dimensioni vetro min:

 (consigliate)150x150 mm

Peso massimo

80 Kg

GUARDA IL BANCHETTO GIREVOLE IN FUNZIONE

Puoi trovare altri video delle nostre macchine in funzione sul canale YouTube. Seguici!
